Description
The Giantz Heavy Duty Drawer Slides come as a pair and are engineered for superior strength, stability, and smooth performance. Featuring a three-section ball bearing design, they deliver quiet and effortless sliding for demanding applications. The secure lock-in and lock-out mechanism keeps drawers firmly fixed in fully closed or fully extended positions, preventing accidental overextension or track detachment. Built from robust cold rolled steel with a corrosion-resistant zinc plated finish, these slides support an impressive load capacity of up to 227kg for reliable heavy-duty storage. Ideal for large drawers, cabinets, industrial storage systems, vehicle fit-outs, RVs, trunks, and multimedia equipment installations, these versatile slides are designed for durability and long-term use. Each set includes two slides along with screws and bonus nuts for convenient installation.

Features

• Durable cold rolled steel construction

• Three-section drawer slide design

• Heavy-duty 227kg load capacity

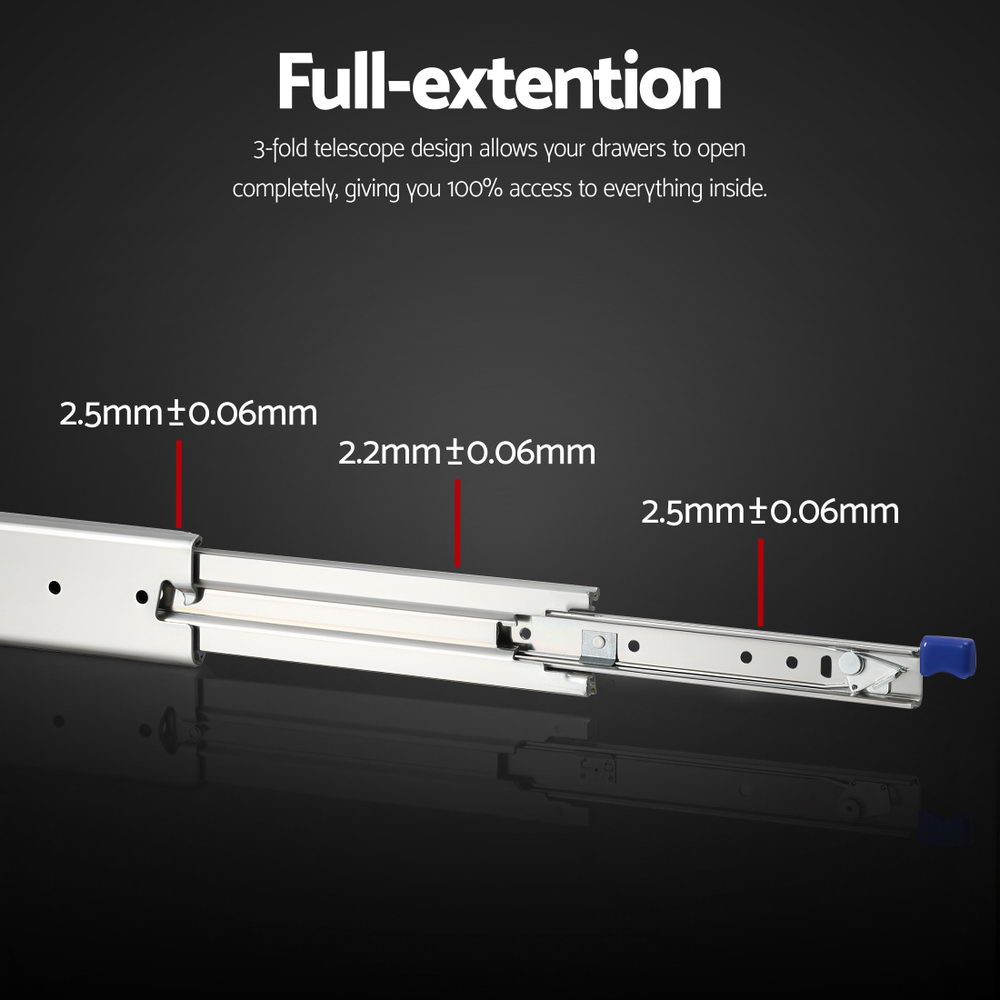

• Full extension for complete drawer access

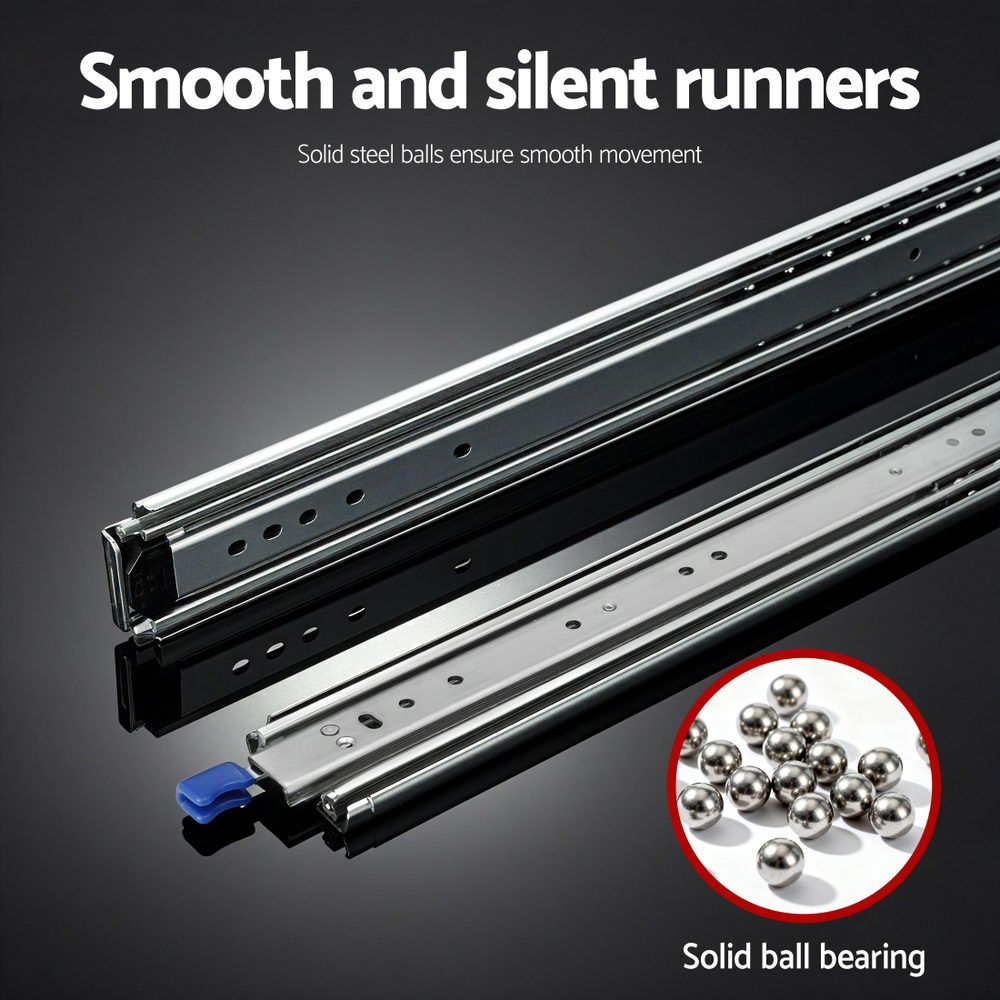

• Smooth push and pull operation with low noise

• Extra wide 76mm sturdy steel rails

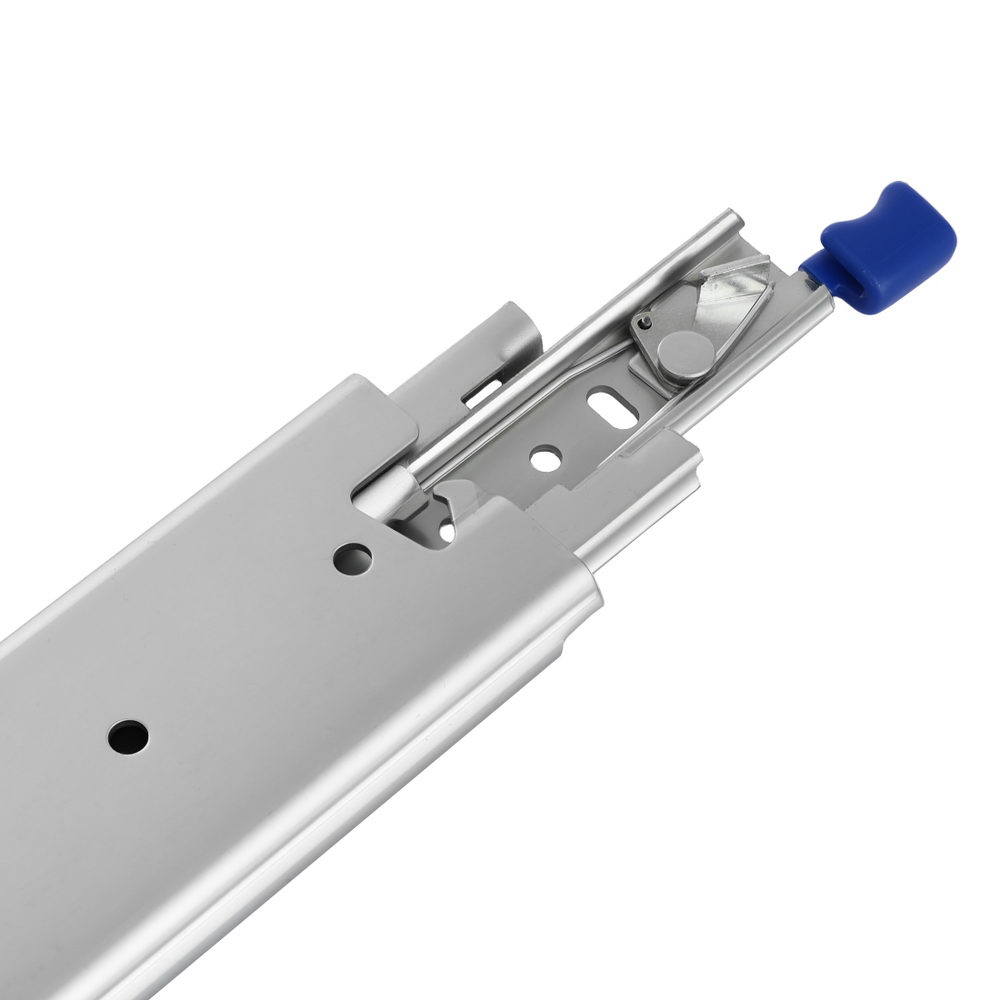

• Secure lock-in and lock-out locking mechanism

• Corrosion-resistant zinc plated finish

• Includes screws and bonus nuts for installation

• Suitable for large cabinets, spacious drawers, RVs, trunks, and multimedia installations

Specifications

• Brand: Giantz

• Color: Silver

• Material: Cold Rolled Steel

• Finish: Zinc Plated

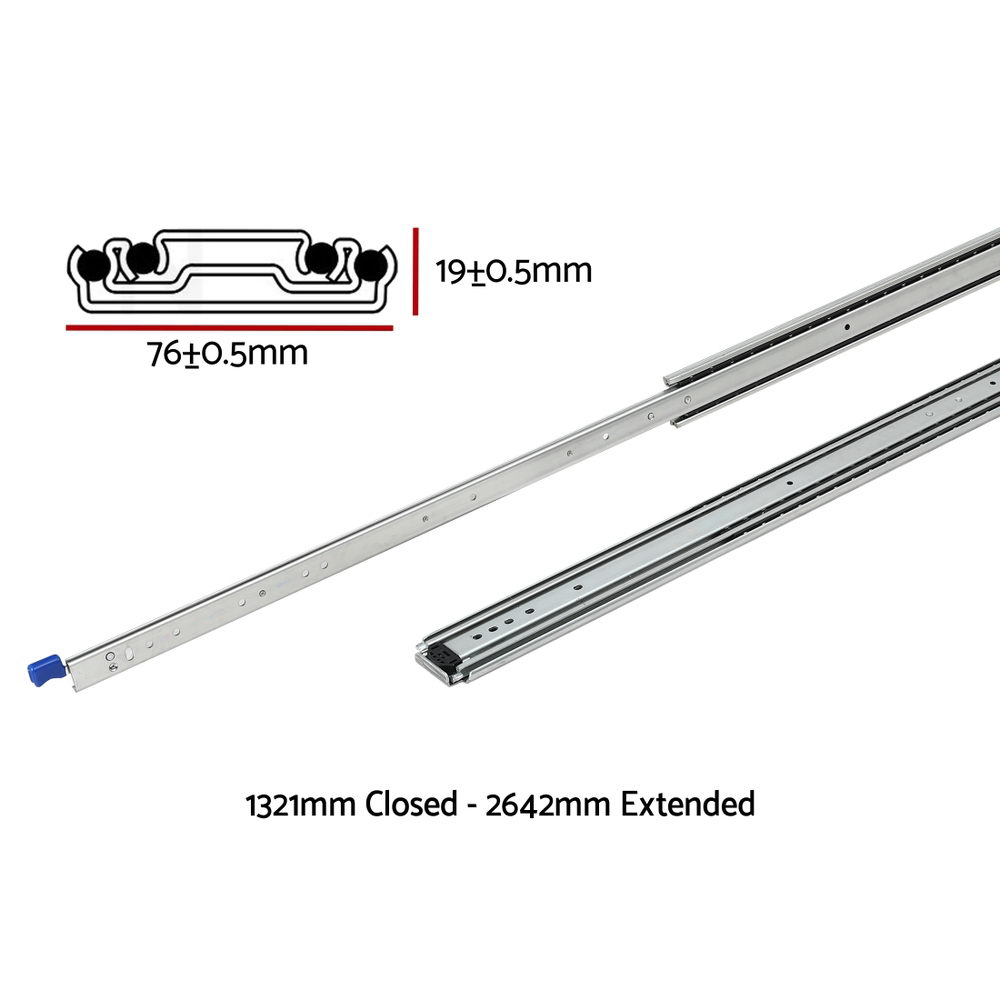

• Rail Width: 76mm

• Rail Thickness: 19.5mm

• Load Capacity: 227KG

• Slide Lock: Support

• Assembly Required: No

• Number of packages: One

• Length Options & Folded Sizes:

  • 914–1829mm (Fully Pull-Out: 1828mm) — Folded Size: 91.4 x 7.6 x 1.9 cm

  • 1321–2642mm (Fully Pull-Out: 2642mm) — Folded Size: 132.1 x 7.6 x 1.95 cm

  • 1524–3048mm (Fully Pull-Out: 3048mm) — Folded Size: 152.4 x 7.6 x 1.95 cm

  • 1804–3608mm (Fully Pull-Out: 3608mm) — Folded Size: 180.4 x 7.6 x 1.95 cm

Package Content

• Giantz Drawer Slide x1 Pair

• M5 Screw x12

• M5 Screw Nut x12

• User Manual x1
