Description
Packed with the latest CCTV technology, the UL-TECH Wireless Security Camera System delivers sharp 3MP Full HD surveillance with ultra-clear imaging for home or business security. Its wireless, plug-and-play design eliminates messy cabling and complicated installation. Each camera features a 3MP sensor with a 1/3" CMOS image sensor, built-in IR-cut filter, and high-quality infrared LEDs for clear day and full-colour night vision up to 20m. High-efficiency H.265+ compression reduces bandwidth usage and extends recording time, helping save storage costs. The system supports customizable motion detection with intelligent alerts, two-way audio with talkback, and remote access via smartphone apps for live viewing, capture, and recording. Built for both indoor and outdoor use with an IP65 waterproof rating, it also protects data during power outages. HDMI and VGA outputs allow direct monitor connection for real-time surveillance.

Features (All Models)

• 3MP Full HD resolution

• 8 Channel 3MP Wi-Fi NVR

• Wireless connection, real plug and play

• 3.6mm lens

• IP65 waterproof for indoor & outdoor use

• Clear day and full-colour night vision

• Night vision range up to 20m

• Clear two-way audio and talk back

• Built-in microphone and speaker

• High-efficiency H.265+ video compression (H.264 supported)

• Built-in IR-cut filter

• Customizable motion detection

• Intelligent alerts

• HDMI and VGA outputs

• Smartphone live viewing (8 channels simultaneously)

• Mobile capture and record support

• Easy installation

• Data protection during power outage

Features (UL-tech No HDD Model)

• Supports P2P technology

• View via free mobile and computer apps

• Cloud system support for remote access

• Bonus USB mouse

• Hard drive required (not included)

• 1 year warranty

• Security updates until at least 31 March 2027

Features (UL-tech 2TB HDD Model)

• Bonus RRP$255 2TB hard drive included

• Bonus USB mouse

Features (UL-tech 1TB HDD Model)

• Supports P2P technology

• View via free mobile and computer apps

• Cloud system support for remote access

• Bonus RRP$195 1TB hard drive included

• Bonus USB mouse

Specifications (All Models)

• Brand: UL-tech

• Colour: White

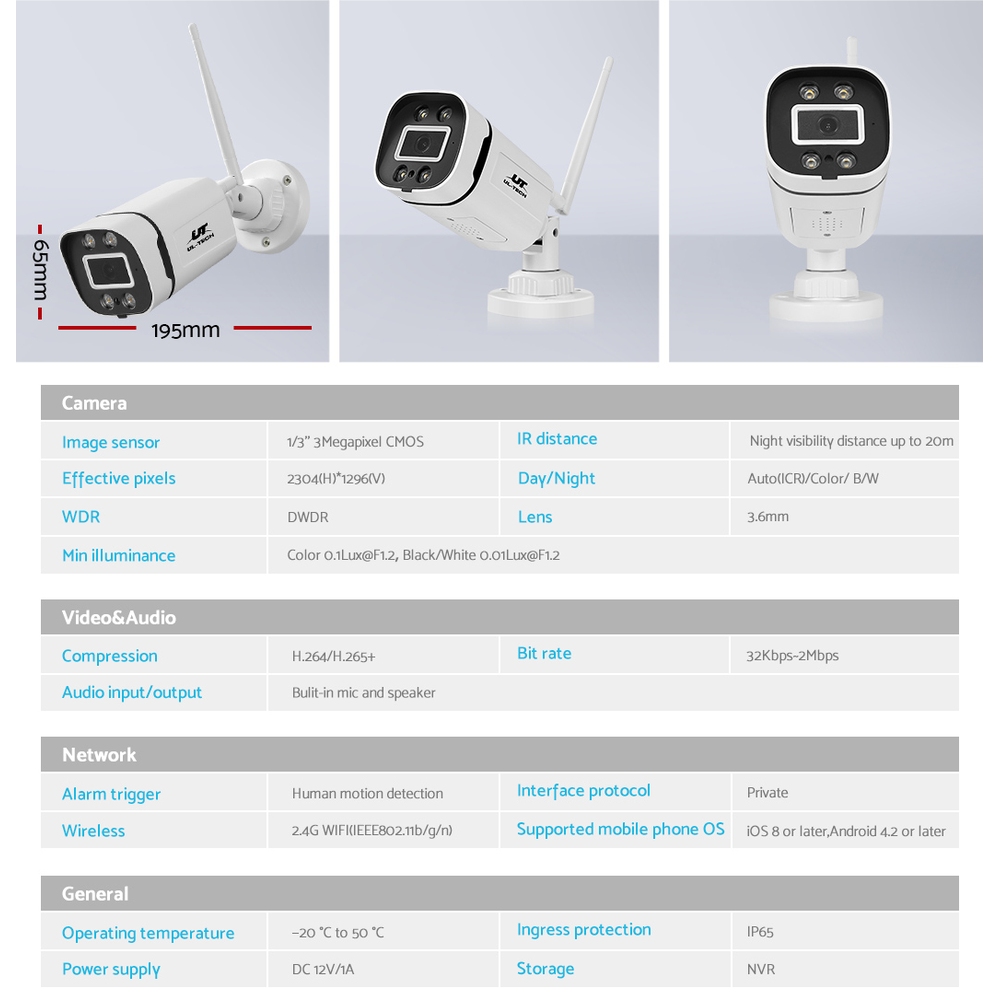

• Camera

  • Image sensor: 3MP

  • Effective pixels: 2304(H) × 1296(V)

  • Lens: 3.6mm

  • Camera housing: Plastic

  • IR distance: Up to 20m

• Video & Audio

  • Compression: H.264 / H.265+

  • Audio input/output: Built-in mic and speaker

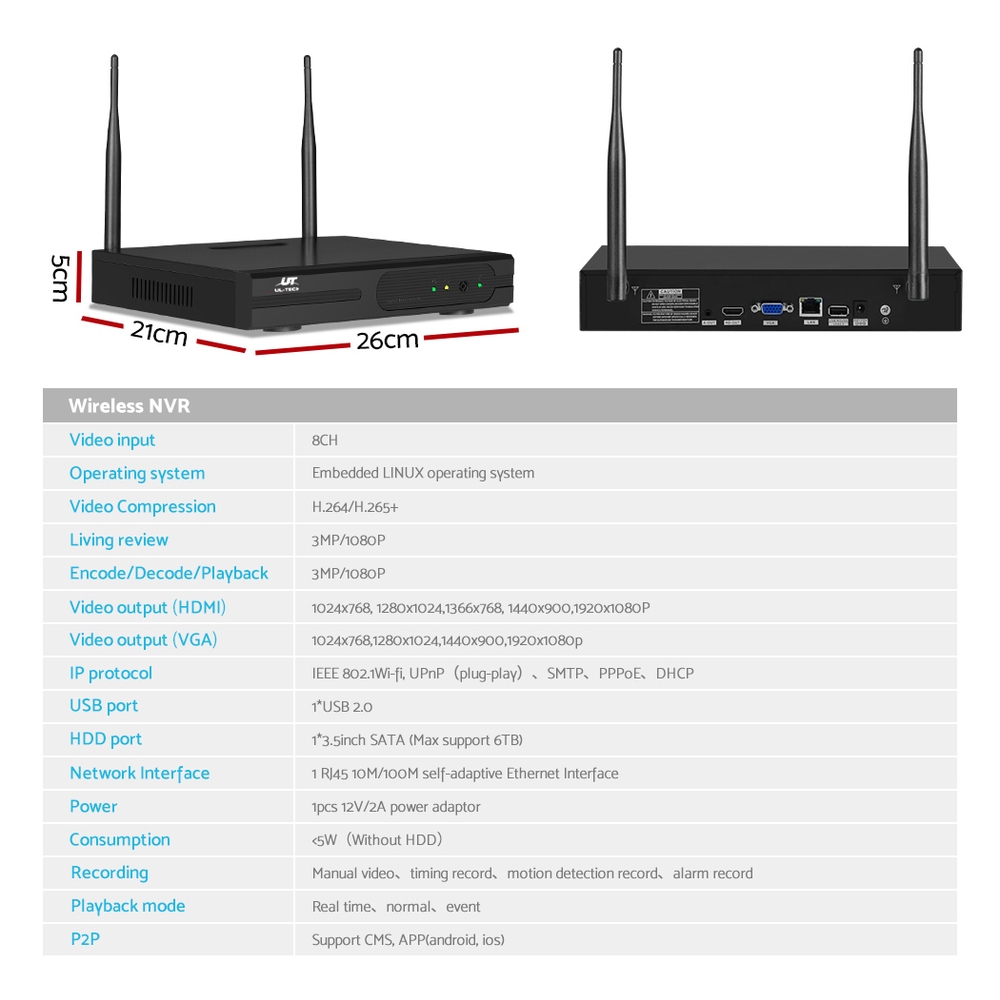

• Wireless NVR

  • Video input: 8CH

  • Video compression: H.264 / H.265+

  • Live view: 3MP / 1080P

  • Encode / Decode / Playback: 3MP / 1080P

  • USB port: 1 × USB 2.0

  • HDD port: 1 × 3.5" SATA (Max 6TB)

• General

  • Power supply: DC 12V

  • Ingress protection: IP65

  • Assembly required: Yes

Specifications (UL-tech No HDD Model)

• Wireless: 2.4G Wi-Fi (IEEE802.11b/g/n)

• Alarm trigger: Human motion detection

• Supported mobile OS: iOS 8 or later, Android 4.2 or later

• Operating temperature: −20°C to 50°C

• Storage: NVR (HDD not included)

• NVR power supply: 12V/2A

• Camera power supply: 12V/1A

• Number of packages: One

Specifications (UL-tech 2TB HDD Model)

• Min illuminance: Color 0.1Lux@F1.2; B/W 0.01Lux@F1.2

• Day/Night mode: Auto(ICR) / Color / B/W

• WDR: DWDR

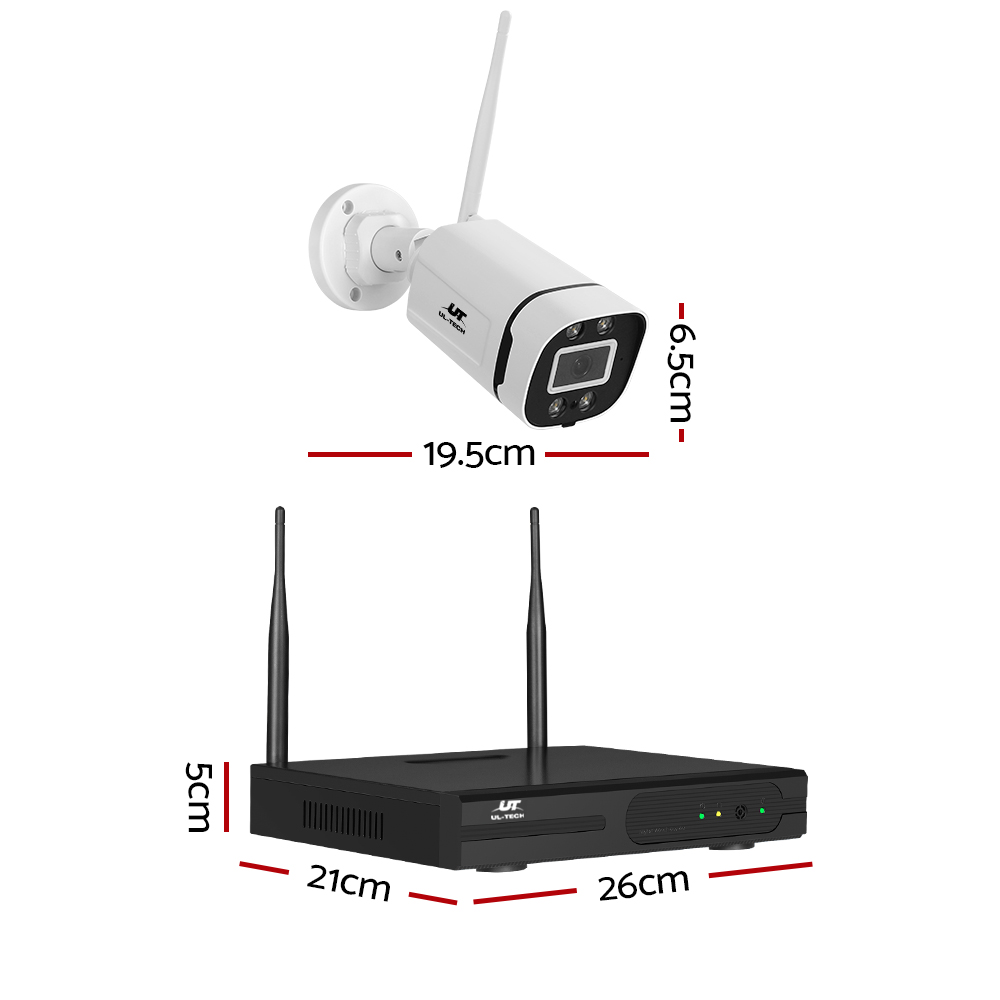

• Overall camera dimensions: 19.5cm × 6.5cm

• Operating system: Embedded Linux

• Number of packages: Two

Specifications (UL-tech 1TB HDD Model)

• Min illuminance: Color 0.1Lux@F1.2; B/W 0.01Lux@F1.2

• Day/Night mode: Auto(ICR) / Color / B/W

• WDR: DWDR

• Overall camera dimensions: 19.5cm × 6.5cm

• Bit rate: 32Kbps ~ 2Mbps

• Alarm trigger: Human motion detection

• Wireless: 2.4G Wi-Fi (IEEE802.11b/g/n)

• Interface protocol: Private

• Supported mobile OS: iOS 8 or later, Android 4.2 or later

• Operating temperature: 20°C to 50°C

• Operating system: Embedded Linux

• Video output (HDMI): 1024×768, 1280×1024, 1366×768, 1440×900, 1920×1080P

• Video output (VGA): 1024×768, 1280×1024, 1440×900, 1920×1080P

• IP protocol: IEEE 802.11 Wi-Fi, UPnP, SMTP, PPPoE, DHCP

• Storage: NVR + 1TB HDD included

• Number of packages: Two

Package Content (All Models)

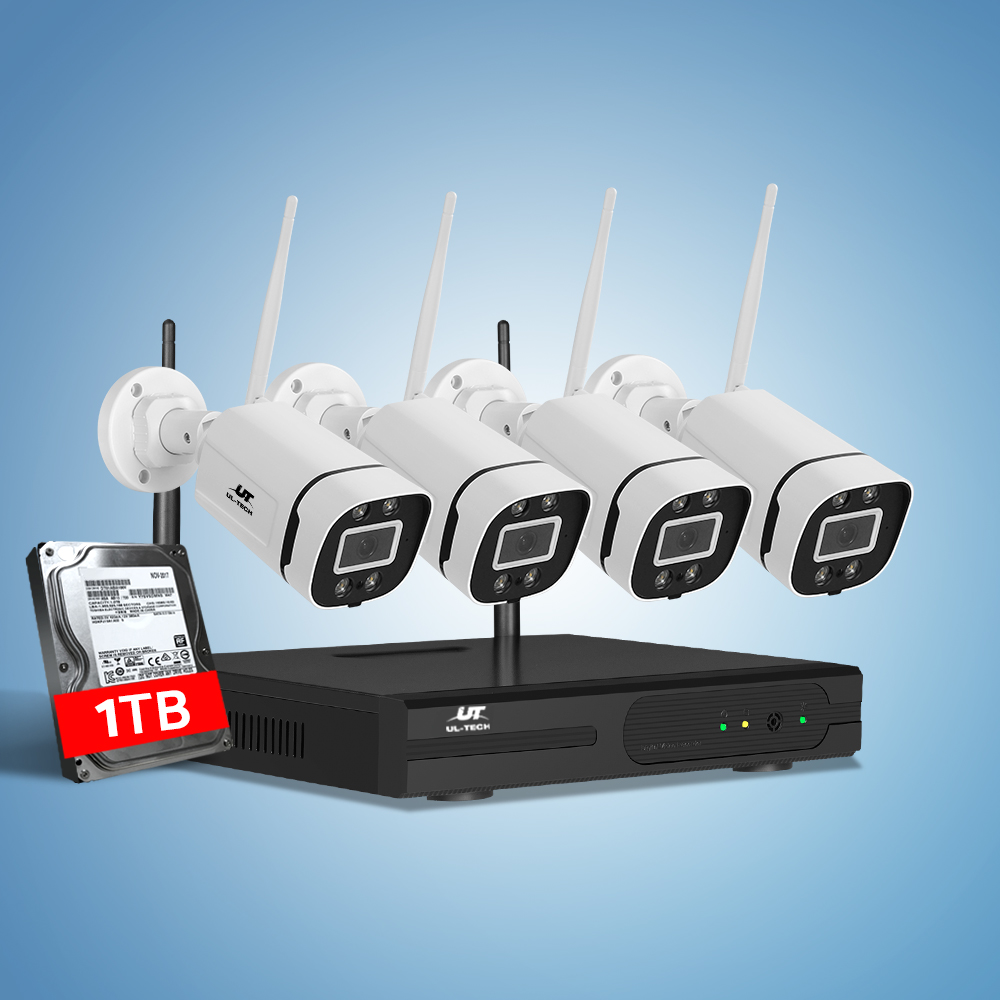

• UL-tech 3MP Wireless Camera × 4

• 3MP 8CH WiFi NVR × 1

• 12V/2A NVR Power Supply × 1

• 12V/1A Camera Power Supply × 4

• 3.3 Feet Network Cable × 1

• USB Mouse × 1

• Mounting Screws Set × 4

• User Manual × 1

Package Content (UL-tech No HDD Model)

• Hard drive not included

• Number of packages: One

Package Content (UL-tech 2TB HDD Model)

• 2TB Hard Drive × 1

• Number of packages: Two

Package Content (UL-tech 1TB HDD Model)

• 1TB Hard Drive × 1

• Number of packages: Two
