Description

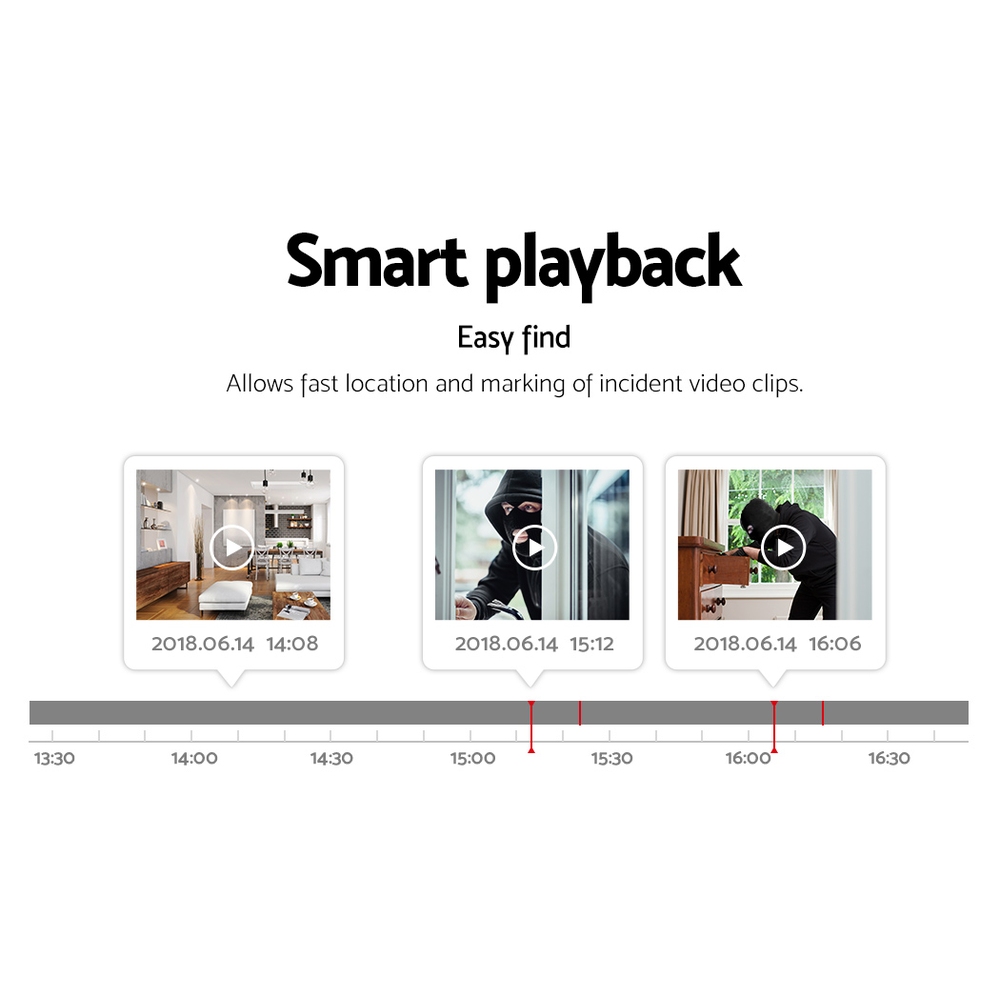

The UL-Tech 8-Channel DVR is a powerful 5-in-1 1080N digital video recorder designed to maximise the performance of your CCTV surveillance system. Compatible with AHD, TVI, CVI, CVBS and IP cameras, it offers flexible integration across multiple camera technologies. Built-in P2P technology and remote access capability allow you to monitor live footage anytime on your smartphone or desktop computer. Customisable motion detection and instant email alerts keep you informed of suspicious activity, while smooth recording and smart playback help you quickly locate important incident clips. HDMI, VGA and USB outputs provide versatile connectivity, and cloud system support enables convenient remote management. Recorded data remains protected during power outages, and included accessories ensure quick and easy setup.

Features

UL-Tech 8-Channel 1080N DVR

• 8 Channel 1080N 5-in-1 DVR

• Supports AHD, TVI, CVI, CVBS and IP cameras

• Supports P2P technology

• Remote access capability

• Live viewing on phone or computer

• Customisable motion detection

• Instant email alarm notifications

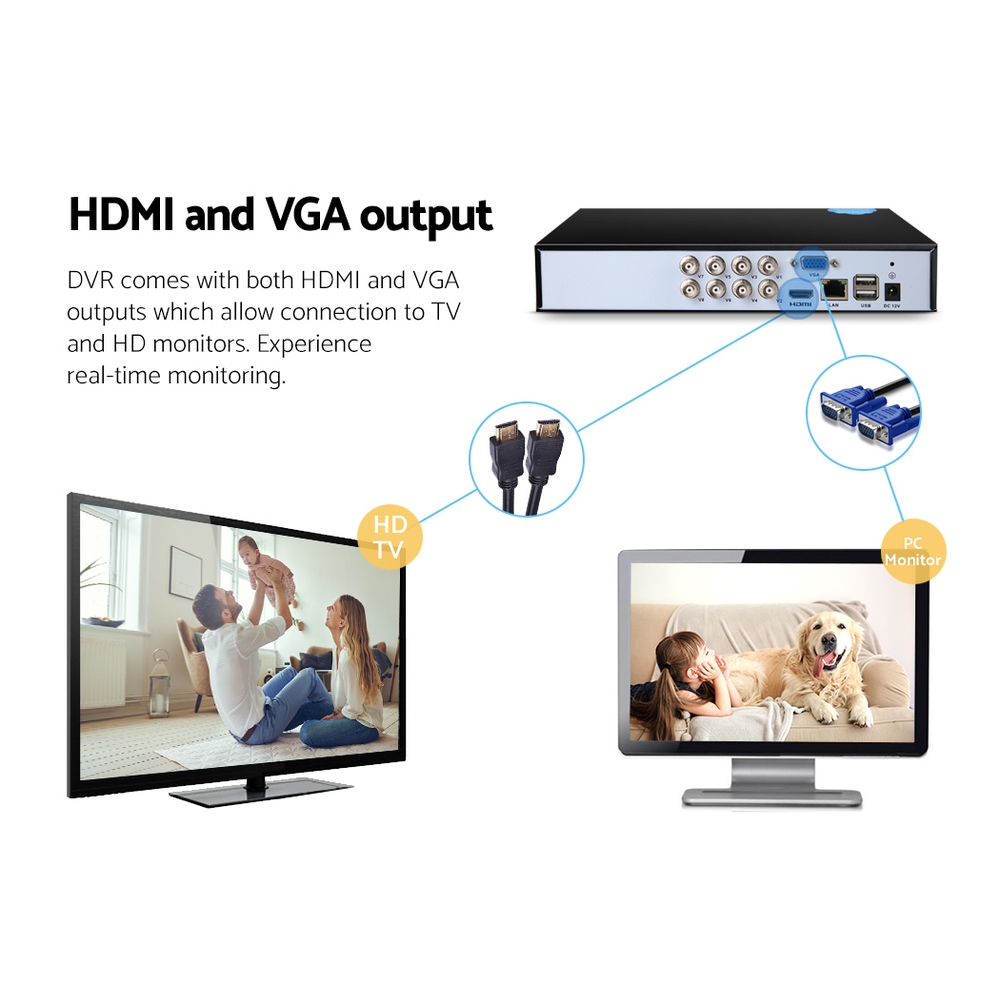

• HDMI and VGA outputs

• USB backup and storage support

• Data protection during power outage

• Supports 8-channel simultaneous live viewing via smartphone

• Supports capture and recording via smartphone

• Cloud system support for remote access

• HDMI output support

• Includes USB mouse

UL-Tech 8-Channel 1080N DVR with 4TB Hard Drive

• 8 Channel 1080N 5-in-1 DVR

• Supports AHD, TVI, CVI, CVBS and IP cameras

• Supports P2P technology

• Remote access capability

• Live viewing on phone or computer

• Customisable motion detection

• Instant email alarm notifications

• HDMI and VGA outputs

• USB backup and storage support

• Data protection during power outage

• Supports 8-channel simultaneous live viewing via smartphone

• Supports capture and recording via smartphone

• Cloud system support for remote access

• HDMI output support

• Includes USB mouse

• Includes 4TB hard drive

Specifications

UL-Tech 8-Channel 1080N DVR

• Refer to gallery for detailed specifications

UL-Tech 8-Channel 1080N DVR with 4TB Hard Drive

Video

• Codec: H.264

• Monitor Quality: VGA, HDMI (HD)

• Preview Ability: 8 × 1080N

• Encode Ability: 8 × 1080N @12fps

• Decode Ability: 8 × 1080N @12fps

• Multi-mode Input:

  • Analog: 8 × 1080N

  • Hybrid: 4 × 1080N (analog) + 4 × 960P (network)

  • Network Only: 16 × 720P; 9 × 1080P; 16 × 960P; 4 × 5MP

• Motion Detection: 192 (16 × 12) detection areas per screen; multi-level sensitivity (local channels)

Record & Playback

• Record Mode: Manual > Alarm > Motion Detection > Timing

• Local Playback: 8 Channel (local input mode)

• Search Mode: Time, calendar, event, channel

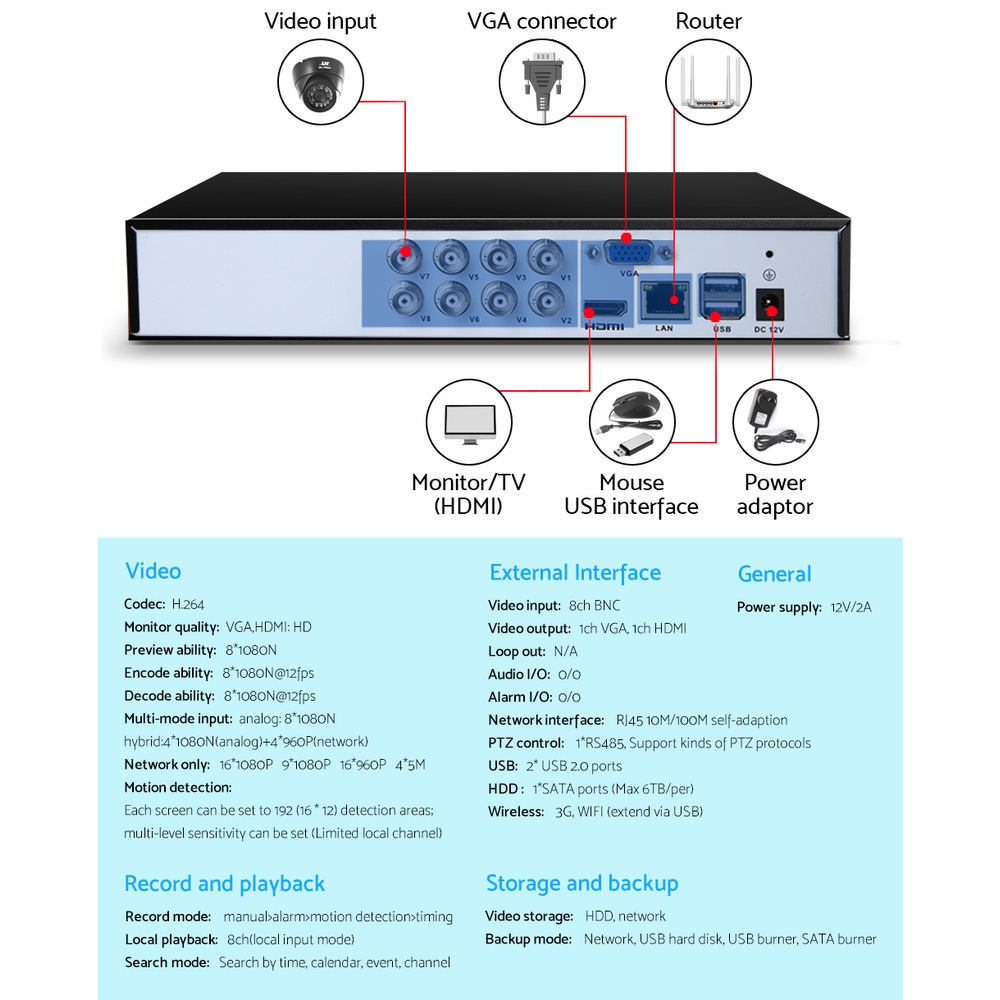

External Interface

• Video Input: 8 Channel BNC

• Video Output: 1 Channel VGA, 1 Channel HDMI

• Loop Output: N/A

• Audio I/O: O/O

• Alarm I/O: O/O

• Network Interface: RJ45 10M/100M self-adaptive

• PTZ Control: Supports multiple PTZ protocols

• USB Ports: 2 × USB 2.0

Storage & Backup

• HDD Interface: 1 × SATA port (Max 6TB per port)

• Video Storage: HDD, network

• Backup Mode: Network, USB hard disk, USB burner, SATA burner

General

• Power Supply: 12V/2A

• Assembly Required: Yes

• Number of Packages: Two

Package Content

UL-Tech 8-Channel 1080N DVR

• 1 × 1080N 8CH DVR

• 1 × 12V/2A Power Plug

• 1 × USB Mouse

• 1 × Network Cable

• 1 × Mounting Screws Pack

UL-Tech 8-Channel 1080N DVR with 4TB Hard Drive

• 1 × UL-Tech 1080N 8CH DVR

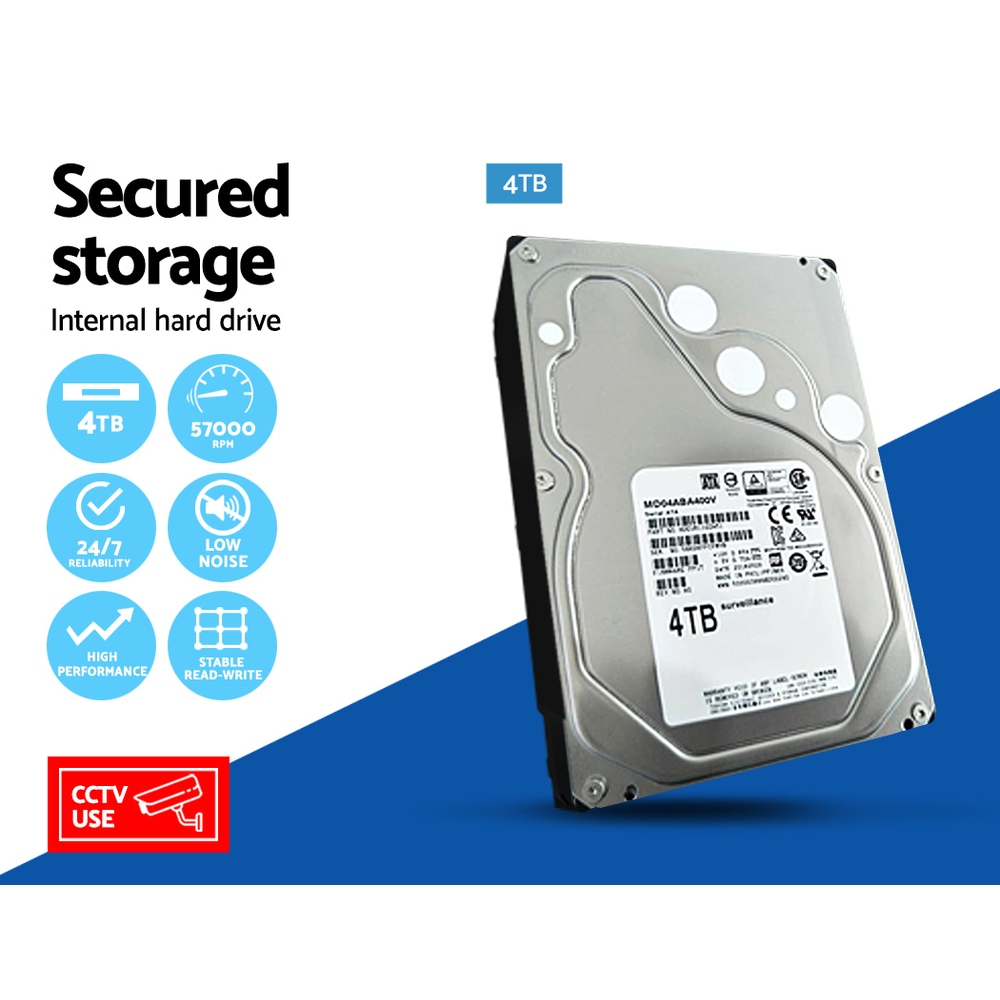

• 1 × 4TB Hard Drive

• 1 × Mounting Screws Pack

• 1 × 12V/2A Power Plug

• 1 × USB Mouse

• 1 × User Manual
